Mountains Don’t Move Themselves

November 2019 Issue

Construction Site :: November 2019

It was a busy "off" season at resorts large and small, all across North America. We look at a sampling of projects and their implications.



Woods Valley Ski Area, NY

Woods Valley Ski Area has completed the penultimate stage in a multi-year, roughly $1 million snowmaking infrastructure expansion. This summer and fall, the ski area undertook $153,000 in upgrades to its pumphouse, including an extension to the existing structure, a new pump, a pump refurb, and pipe work.

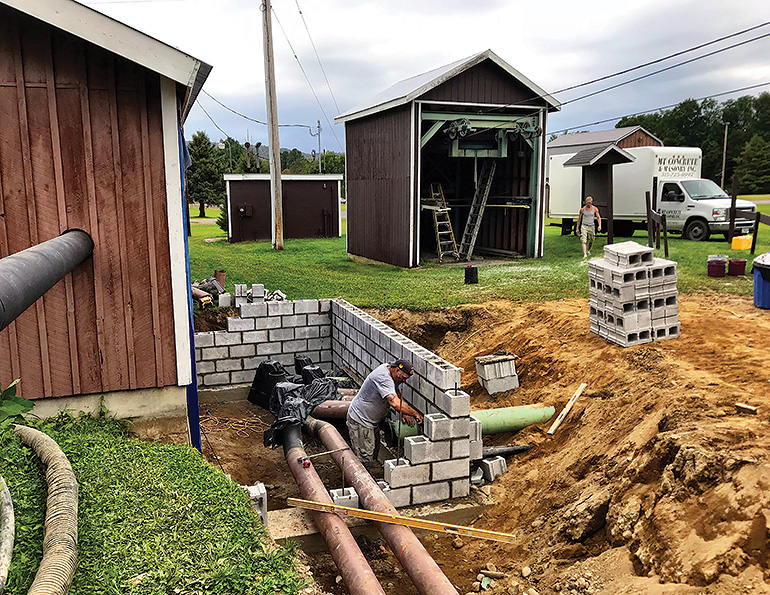

The 128 sq. ft. pumphouse addition makes room for a new 200 hp vertical pump and a refurbished 100 hp vertical pump, both furnished by Ratnik. The pumps increase pumping capacity from 750 gpm to 1,260 gpm. A third pump will be added next fall to bring total capacity to 2,100 gpm. A variable frequency drive and a programmable logic controller were also added to maximize efficiency. The system operates manually but can be automated in the future.

All pipe, from the compressor and pump manifolds to the first set of hydrants on all lines leaving the pumphouse, was upgraded from 6-inch to 8-inch lines to increase capacity.

Advertisement

Pro Deals Billboard

Other upgrades over the last six years include a 13-million-gallon snowmaking pond, 2,500 feet of 10-inch pipe and conduit from the pond to the pumphouse, and additions of 11,000 feet of snowmaking pipe, 41 new air and water hydrants, and 95 fixed snow guns, including 86 low-e HKDs, eight SMI fans, and one TechnoAlpin fan.

Once the project is complete, Woods Valley will be able to cover 60 percent of its 40 acres of terrain in just 36 hours, according to GM Tim Woods. Financially, the multi-year project has been bolstered by an $8,500 National Grid rebate for the VFD installation and $265,000 in rebates through the ISKINY-NYSERDA snow gun program.
